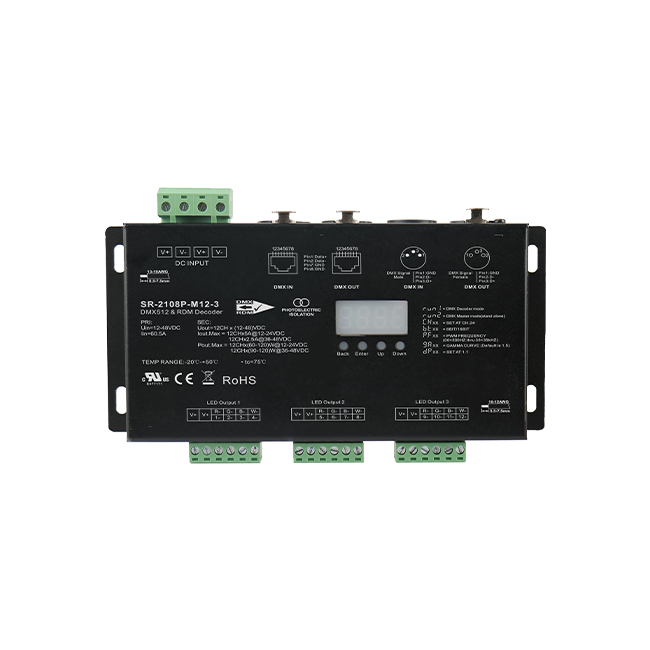

This DMX/RDM decoder features master & decoder modes, metal housing, and digital display for easy address setting. It offers 12 PWM channels with selectable resolution (8/16bit), frequency (500Hz–35kHz), and gamma curve (0.1–9.9). Multiple DMX ports (RJ45, XLR3/5) and galvanic isolation ensure flexible, reliable lighting control.
Key Features:
• Master & decoder mode, RDM function
• Metal housing, digital display to show data directly, easily to set and show DMX address.
• With multiple kinds of DMX in/out ports: RJ 45, XLR3/5.
• Total 12 PWM output channels, common anode. DMX channel quantity 1CH, 4CH, 6CH, 12CH settable.
• PWM output resolution ratio 8bit , 16bit settable.
• Output PWM frequency from 500HZ ~ 35K HZ settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• Kod çözme modu ayarlanabilir.
• Galvanic isolation
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Çıkış Akımı | Çıkış Gücü | Boyutlar (UxGxY) |
|---|---|---|---|---|
| SR-2108P-M12-3/5 | 12-48VDC |
12CHx5A@12-24VDC 12CHx2.5A@36-48VDC |
12CHx(60-120)W@12-24VDC 12CHx(90-120)W@36-48VDC |
197.2×92.2xmm |
Ürün Boyutları
Kablolama Şeması
