1 zone RGBW DMX512 master SR-2812B is a full touch controller designed in accordance with standard protocol DMX512(1990) and offers fast and accurate color tone adjustment and independent brightness dimming of each RGBW channel with unique design touch color wheel. Designed with touch color wheel, the DMX512 controller can adjust color tone and brightness for RGBW LEDs smoothly and accurately. The RGBW controller can control 1 zone with endless decoders in each zone. Independent smooth dimming of each RGBW channel enables the DMX master to achieve millions of colors. Italian/Australian and American size are optional besides standard 86*86mm size.
Key Features
- Ultra sensitive high strength glass touch panel with touch color wheel
- DMX signal output, complies with standard protocol DMX512(1990), and compatible with DMX decoders from any other suppliers
- Smooth and accurate color tone adjustment by touching the color wheel
- 1 zone DMX wall mounted master
- Independent brightness adjustment of each RGBW channel to achieve millions of changing colors
- Easy to install with standard 86**86mm box size
- Italian/Australian, American size optional
Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|---|---|---|

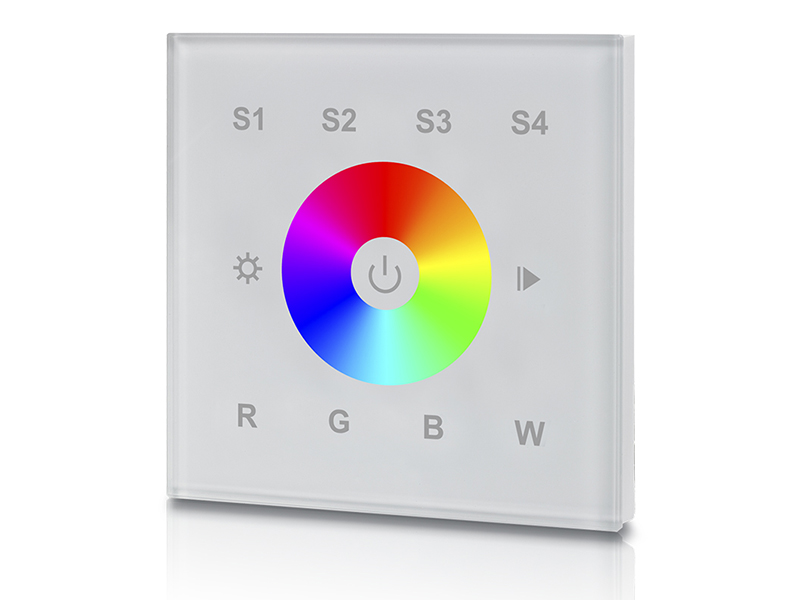

| SR-2812B | 12-24VDC | DMX512 Signal | 86*86*41 |

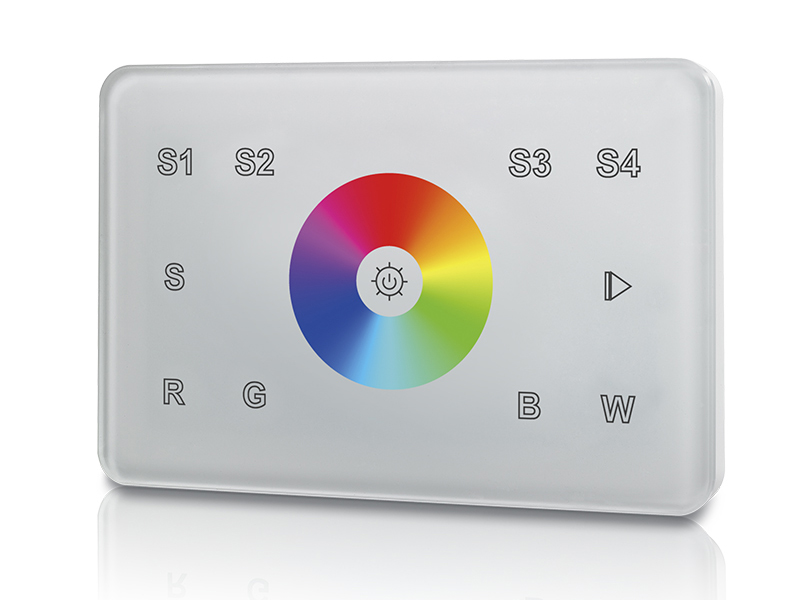

| SR-2812B(IT) | 12-24VDC | DMX512 Signal | 120*80*41 |

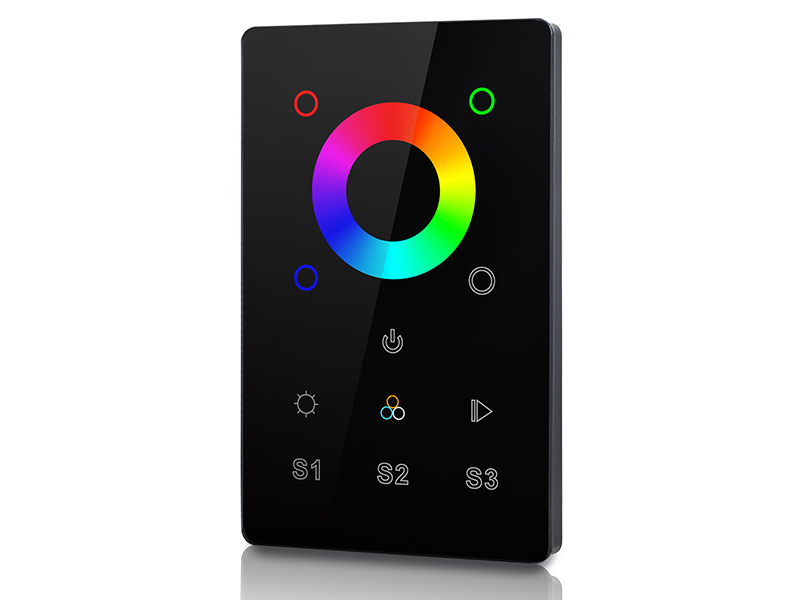

| SR-2812B(US) | 12-24VDC | DMX512 Signal | 75*120*41 |
Product Dimension
Installation Diagram
Wiring Diagram
