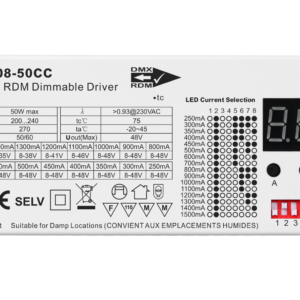

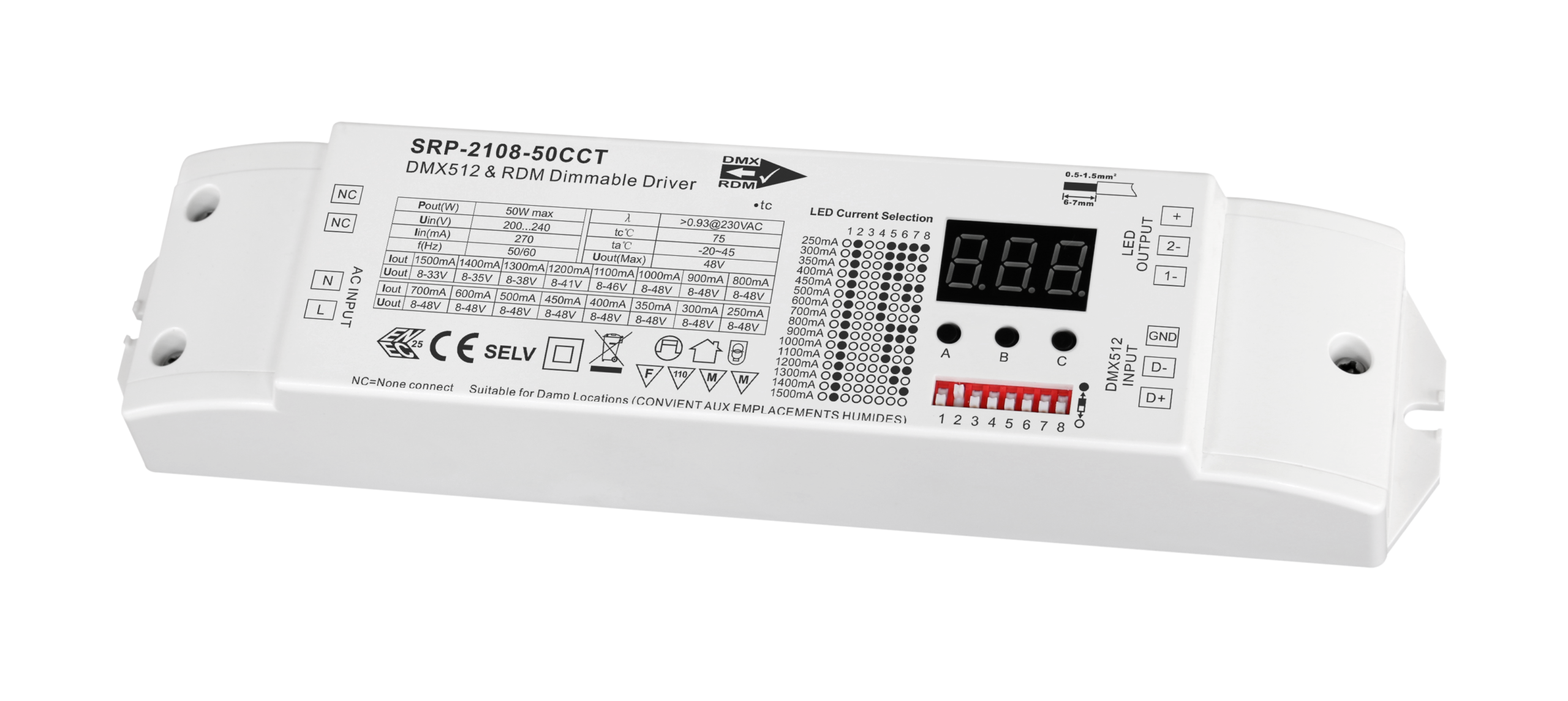

SRP-2108-50CCT is a 50w dimmable DMX LED driver with 2 channels constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for CCT LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.93 and efficiency is higher than 86%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX addresses can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers.
Key Features
- Dimmable LED driver, Max. output power 50W
- 2 channels constant current output, 250mA ~ 1500mA Adjustable by DIP switches
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.93, Efficiency > 86%
- Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers
- DMX addresses can be manually assigned via buttons and showed on digital display
- To control CCT LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
Specifications
| Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
|---|---|---|---|---|---|
| SRP-2108-50CCT | 200-240VAC | 250ma~1500ma | 50W | 8-48VDC |
210*50*32
|
Product Dimension
Wiring Diagram
