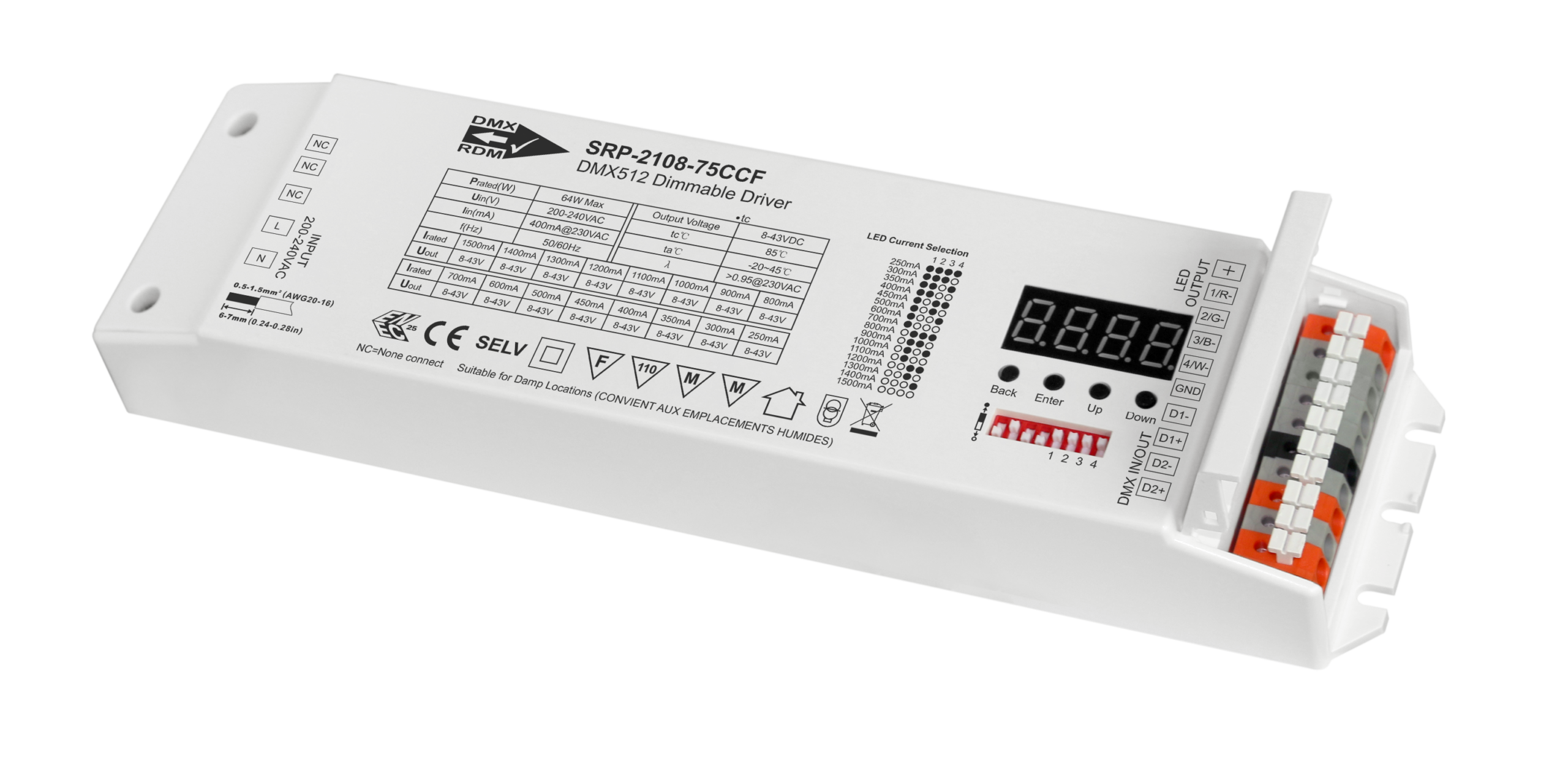

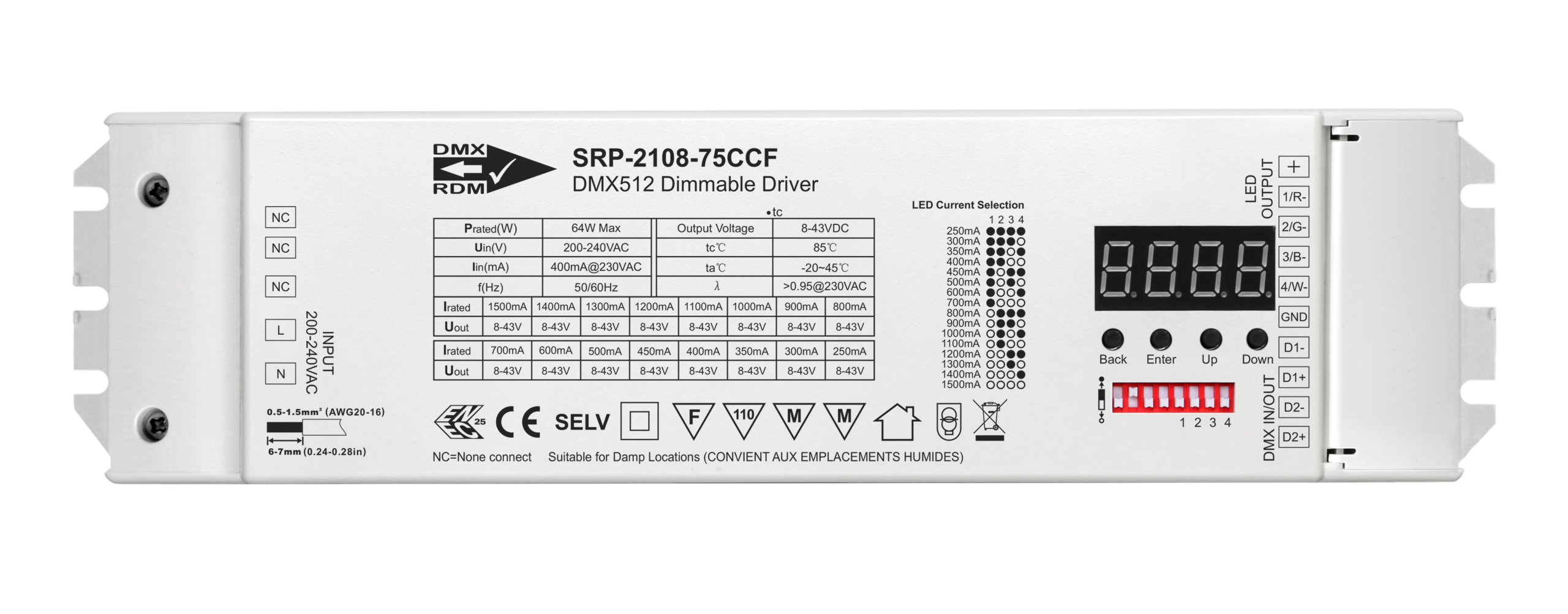

SRP-2108-75CCF is an ENEC approved DMX 75w dimmable constant current LED driver with 4 channels 250mA-1500mA output that can be adjustable by DIP switches and 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX channel quantity can be set as 1/2/3/4 via buttons, which enables the driver to control single color, tunable white, RGB/RGBW LED lighting. DMX addresses can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008), DMX512-A, this DMX driver is compatible with universal DMX master controllers. ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
• Dimmable LED driver, max. output power 75W total
• 4 channels constant current output, 300mA-1500mA output current optional
• Dips to set the operation current
• PWM output resolution ratio 8bit , 16bit settable.
• Output PWM frequency from 500HZ ~ 2K HZ settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To control single color, dual color, RGB/RGBW LED lighting
• Built-in DMX512 interface, support RDM bi-directional communication
• Compatible with universal DMX512 master controllers
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Specifications
| Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
|---|---|---|---|---|---|
| SRP-2108-75CCF | 200-240VAC | 250mA-1500mA | 75W | 8-48VDC |
244*64*32
|
Product Dimension
Wiring Diagram
