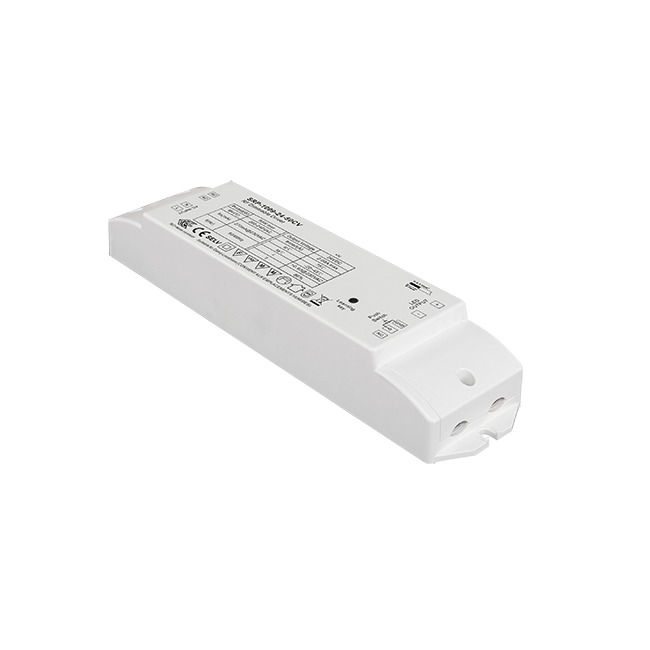

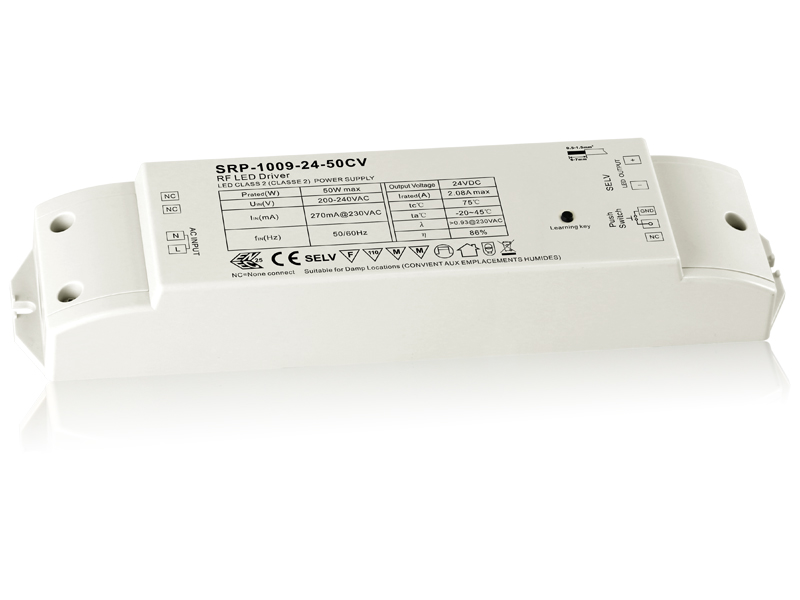

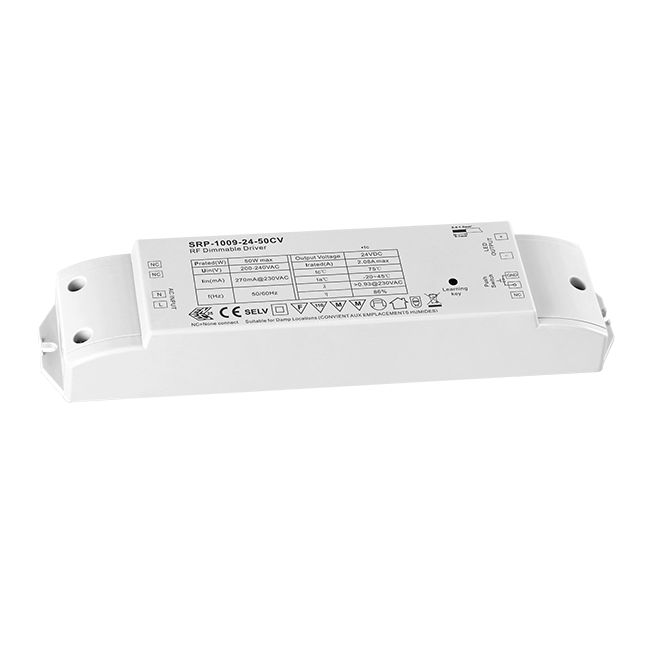

SRP-1009-24-50CV is a 50W Dimmable Constant Voltage LED Driver with 1 channel 12VDC or 24VDC output. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch.
Key Features
- Dimmable Constant Voltage LED Driver, Max. output power 50W
- 1 channel 12VDC or 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 85%
- RF control interface and can be compatible with a variety of SR-1009 series RF remotes
- Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
- To control constant voltage single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Push dim function while being connected with a push switch
- IP20 rating, suitable for indoor LED lighting applications
- Radio frequency available: 869.5/434/916.5MHz
Specifications
| Part No. | Input Voltage | Output Voltage | Output Power | Output Current | Dimension (mm) |
|---|---|---|---|---|---|
| SRP-1009-24-50CV | 200-240VAC | 12VDC | 50W | 4.16A | 50*210*32 |
| SRP-1009-24-50CV | 200-240VAC | 24VDC | 50W | 2.08A | 50*210*32 |
Product Dimension
Wiring Diagram
