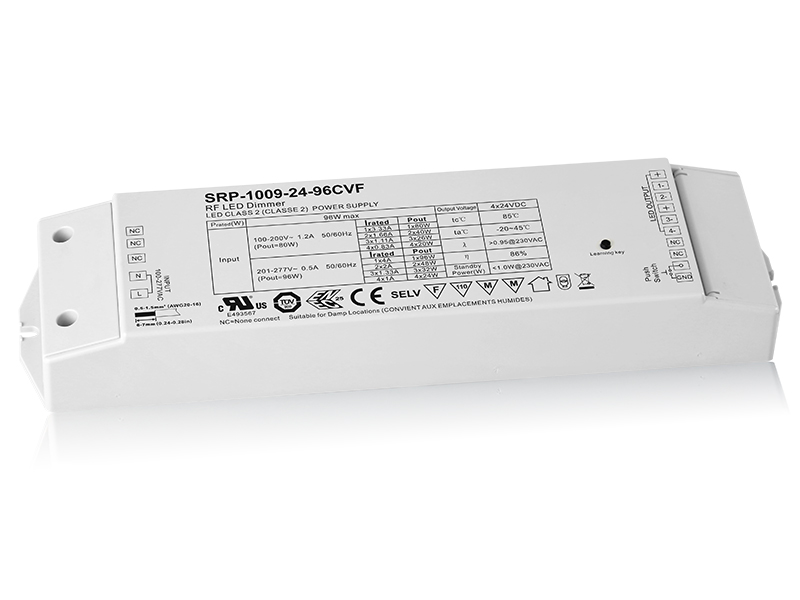

SRP-1009-24-96CVF is an UL, ENEC and TUV approved 96W dimmable PWM RGBW LED driver with 4 channels 24VDC constant voltage output with 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. The driver can control single color, tunable white, RGB/RGBW LED lighting. UL, ENEC and TUV certification ensures high safety performance of the driver to be used worldwide.
Key Features
- Dimmable 24V PWM RGBW LED Driver, Max. output power 96W
- UL, ENEC and TUV certification
- 100-277VAC universal input
- 4 channels 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%
- RF control interface and can be compatible with a variety of SR-1009 series RF remotes
- Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
- To control constant voltage single color, tunable white, RGB/RGBW LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
- Radio frequency available: 869.5/434/916.5MHz
Specifications
| Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
|---|---|---|---|---|---|
| SRP-1009-24-96CVF | 100-277VAC | 24VDC | 96W | 4A max. | 64*244*32 |
Wiring Diagram
