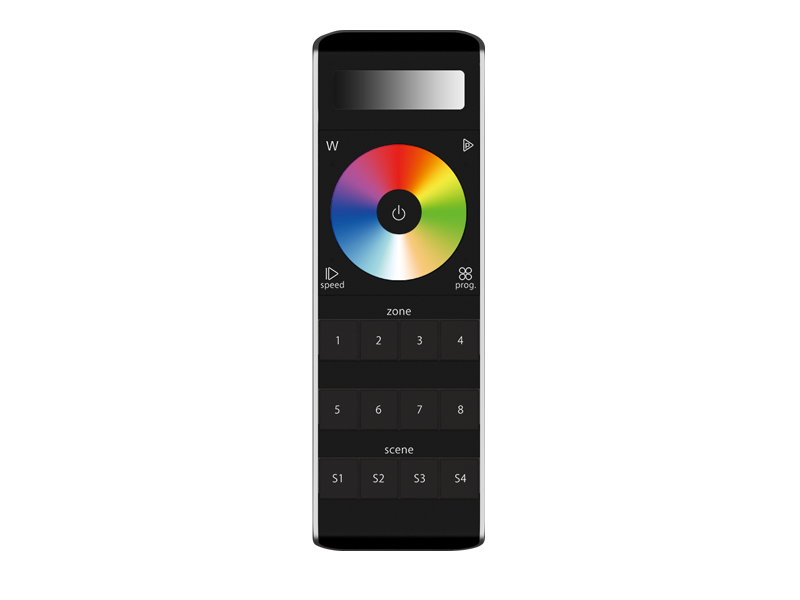

The RGBW RF LED controller SR-2858Z8 is the latest innovation which combines the amazing industrial design and advanced RF control technology from Sunricher. The RGB plus W remote controller is designed with sleek streamline appearance and high end PC material, which looks like an attractive artwork. The RF controller works with SR-1009 series receivers to control RGB+W LED lighting. The ultra sensitive tempered glass RGB touch color wheel enables accurate and fast color tone adjustment and the brightness of each R, G, B, W channel can be adjustable independently to mix millions of colors. The LED controller can control 8 zones separately or synchronously with endless receivers in each zone. There are built-in 10 changing modes with changing speed adjustable. Pattern changing can be synchronized to ensure consistent change forever. 4 scenes can be saved for each zone if you do not like the preset modes. Receivers can be WiFi controlled via APP installed on IOS or Android mobile devices after working with WiFi-RF converter.
Key Features
- Programmable RGBW RF remote controller with 434MHz/869.5MHz/916.5MHz frequency available
- Sleek streamline design with high end PC material, comfortable to touch
- User-friendly interface, easy and simple operation
- Ultra-sensitive tempered glass touch color wheel, accurate and fast RGB color tone adjustment
- R, G, B and W channels can be controlled separately
- Operation return function
- Control 8 zones separately or synchronously, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes
- Set 4 scenes
- Enable to set color sequence
- Preset 10 changing modes, with pause function
- Pattern changing speed adjustable
- Synchronization function of pattern changing ensures consistent change forever
- Enable to dim brightness of each R, G, B, W channel, in order to mix millions colors
- Receivers can work with WiFi-RF converter after installing software on IOS and Android system
Function Introduction
Remote
| Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
|---|---|---|---|---|
| SR-2858Z8 | 4.5VDC | 434MHz/869.5MHz/916.5MHz | 52*153*19 | RF Wireless |
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|---|---|---|---|---|

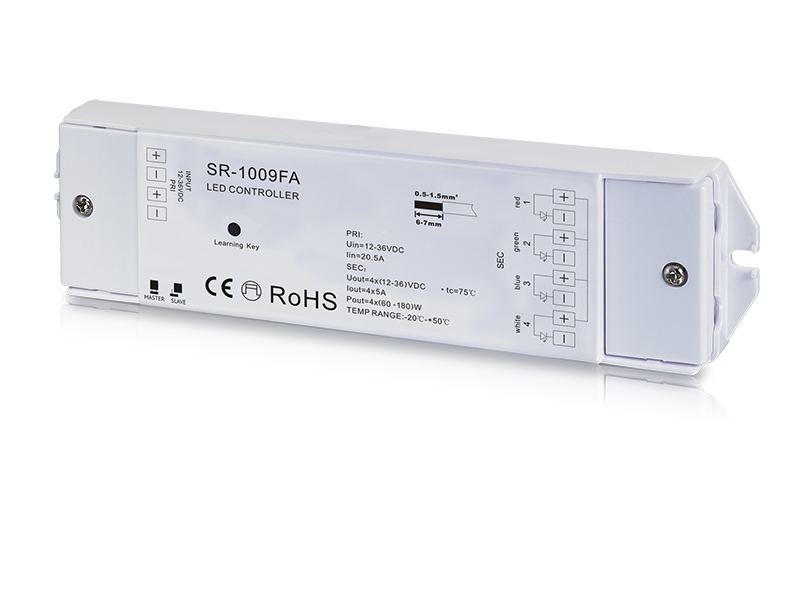

| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |

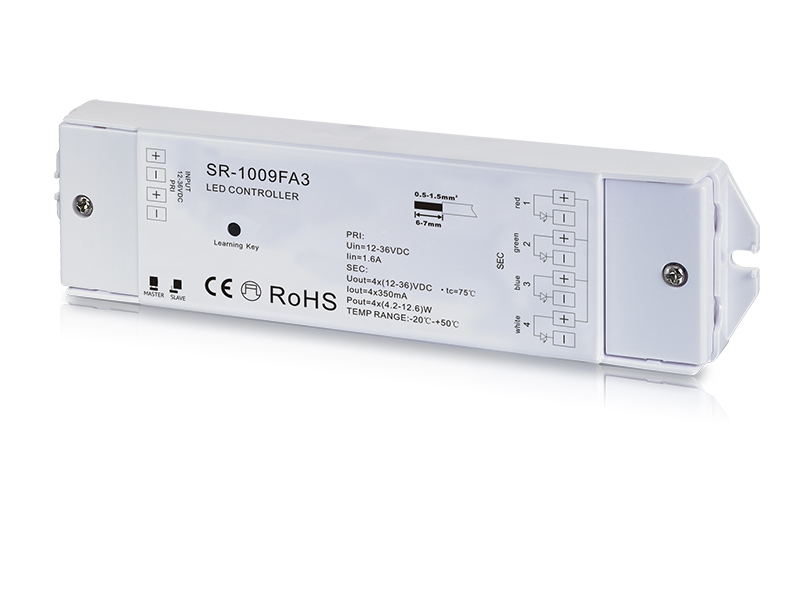

| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
| SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Product Dimension
Receiver Wiring Diagram for Single Unit
Receiver Wiring Diagram for Multiple Units
