RF LED RGBW Controller SR-2819T8

RF LED controller SR-2819T8 is a RGBW controller with unique design touch color wheel which offers ultra sensitive touch control to adjust color tone fast and accurately. Each RGBW controller can control 8 zones separately or synchronously with endless receivers in each zone.

SKU: SR-2819T8 Category:

RF LED controller SR-2819T8 is a RGBW controller with unique design touch color wheel which offers ultra sensitive touch control to adjust color tone fast and accurately. Each RGBW controller can control 8 zones separately or synchronously with endless receivers in each zone. Independent dimming of each R, G, B, W channel enables the wireless remote to achieve millions of colors. 10 built-in changing patterns are available with 8 level adjustable changing speed. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Key Features

  • Adjustable changing speed with 8 levels, quickest speed is 10S, slowest speed is 900S
  • Enable to control 8 zones separately. Each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes
  • Changing modes of 8 zones can be synchronized without any confusion
  • Controlling RGBW 4 colors that achieve more selectable colors than traditional RGB control
  • To work with power repeater to expand output unlimitedly
  • To adjust brightness of each color independently that can achieve millions of changing colors
  • Built-in 10 changing modes
  • Enable to save 4 colors
  • Synchronization function of pattern changes ensure consistent change forever
  • Receivers can work with RF-WIFI converter after installing software on IOS and Android system
  • Enable to dim brightness of each R, G, B, W channel, in order to mix millions of colors

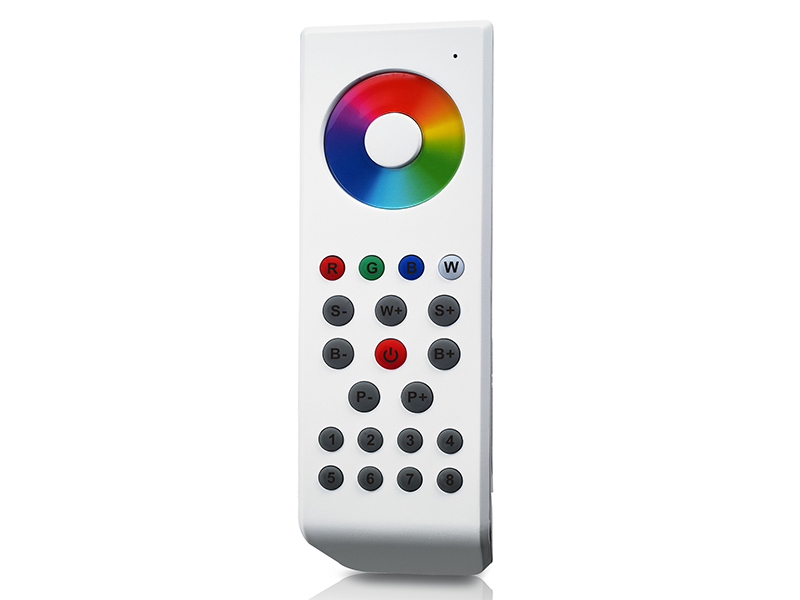

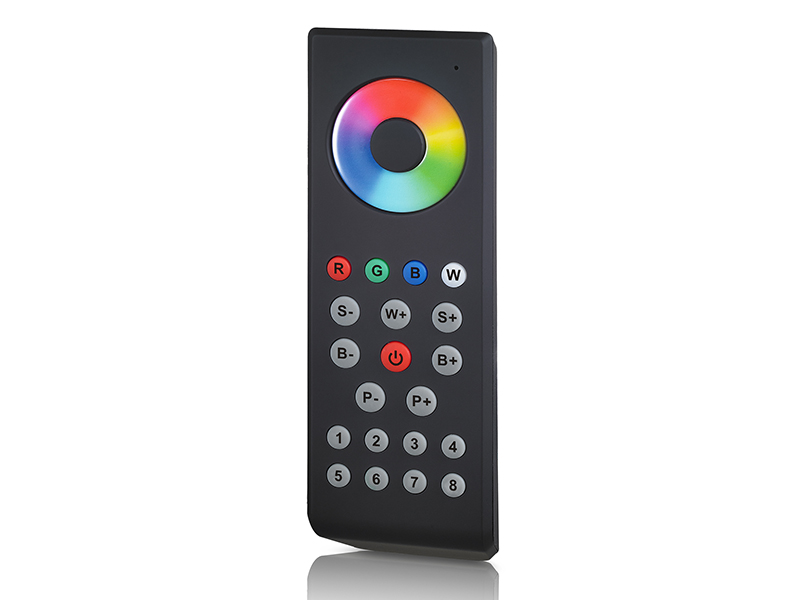

Remote

Part No. Operation Voltage Operation Frequency Dimension (mm) Remarks
SR-2819T8 4.5VDC 434MHz/869.5MHz/916.5MHz 43.8*131.6*24.5 RF Wireless

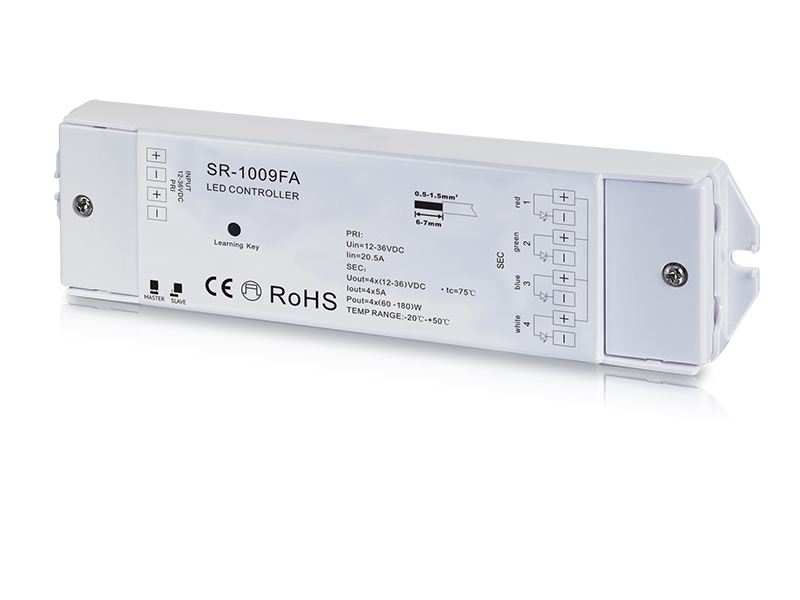

Compatible Receiver

Part No. Input Voltage Output Current Output Power Output type Dimension (mm)
SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 46*178*18
SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Constant Current 46*178*18













Product Dimension

Product Dimension



Receiver Wiring Diagram

Receiver Wiring Diagram for Multiple Units

Kullanım Kılavuzu (PDF)
