RF&WiFi Remote LED Dimmer SR-2833K4

RF&WiFi remote LED dimmer SR-2833K4 is a single color LED controller which offers both switch on/off and smooth brightness dimming functions. Designed with easy-to-use interface, the dimmer controller features fast and smooth dimming from 0.1% to 100% without any flickering.

SKU: SR-2833K4 Category:

RF&WiFi remote LED dimmer SR-2833K4 is a single color LED controller which offers both switch on/off and smooth brightness dimming functions. Designed with easy-to-use interface, the dimmer controller features fast and smooth dimming from 0.1% to 100% without any flickering. Each controller can control 4 different zones separately or synchronously with endless receivers in each zone. Smooth dimming range from 0.1%-100% without any flickering can be very comfortable for human eyes. Push dim function is available while the receiver is connected with a push switch. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Key Features

  • Reliable stable switch and dimming control function, control distance can be over 20m
  • Battery in the remote comes with long lifespan, can be used for 2 years
  • Control 4 different zones separately or synchronously with endless receivers in each zone
  • Swicth on/off lighting slowly without any flickering
  • Work with power repeater to expand the output power unlimitedly
  • Enable to be dimmed and switched on/off by push button after connecting receivers
  • Smooth dimming without any flickering from 0.1% to 100%
  • Push dim function
  • Receivers can work with WiFi-RF converter after installing APP on IOS and Android systems

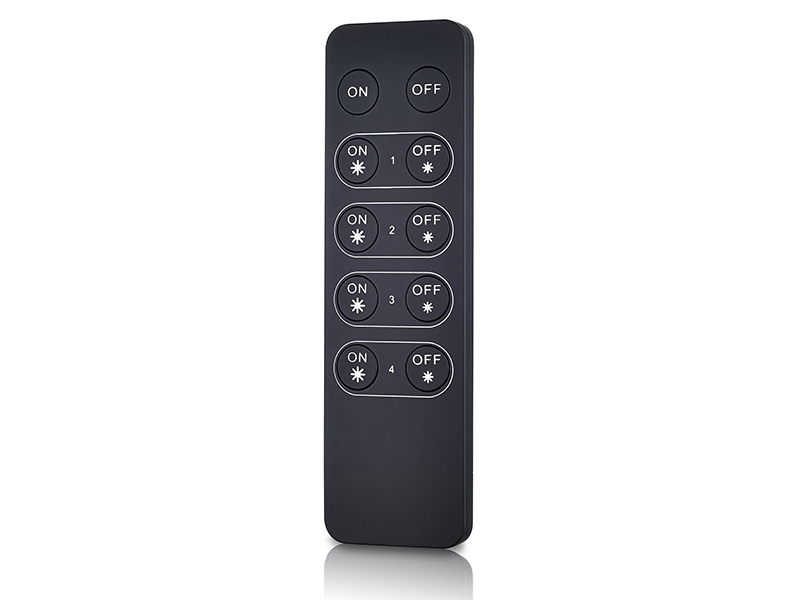

Remote

Part No. Operation Voltage Operation Frequency Dimension (mm) Remarks
SR-2833K4 3VDC 434MHz/869.5MHz/916.5MHz 39*136.5*10.7 RF Wireless











Compatible Receiver

Part No. Input Voltage Output Current Output Power Output type Dimension (mm)

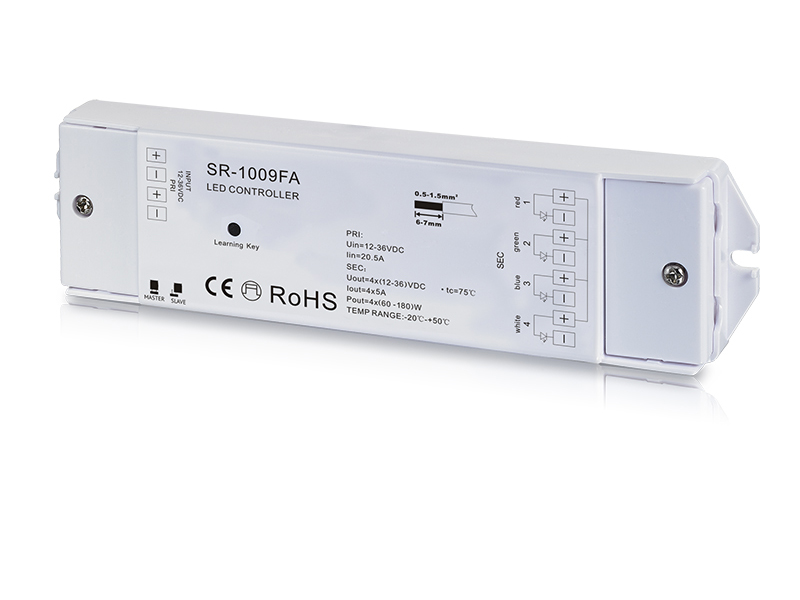

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 46*178*18

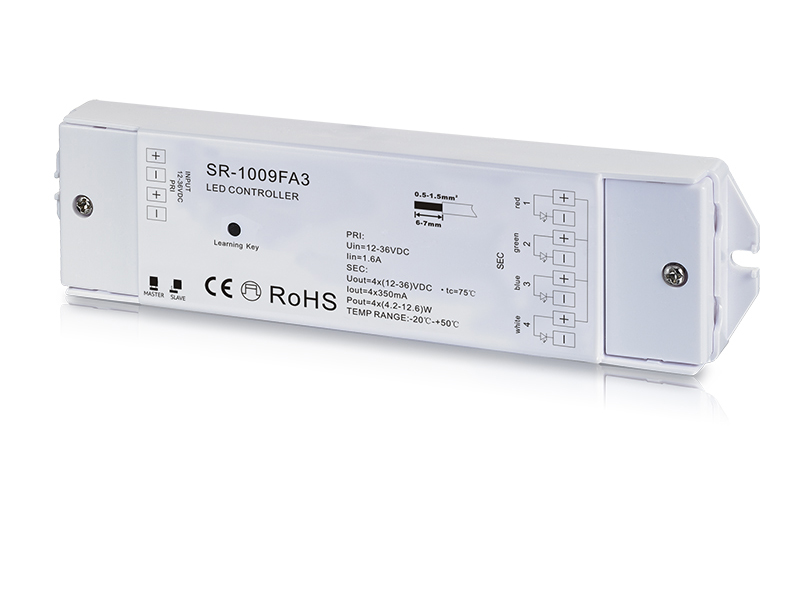

SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Constant Current 58*168*28













Product Dimension

Product Dimension



Receiver Wiring Diagram

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
