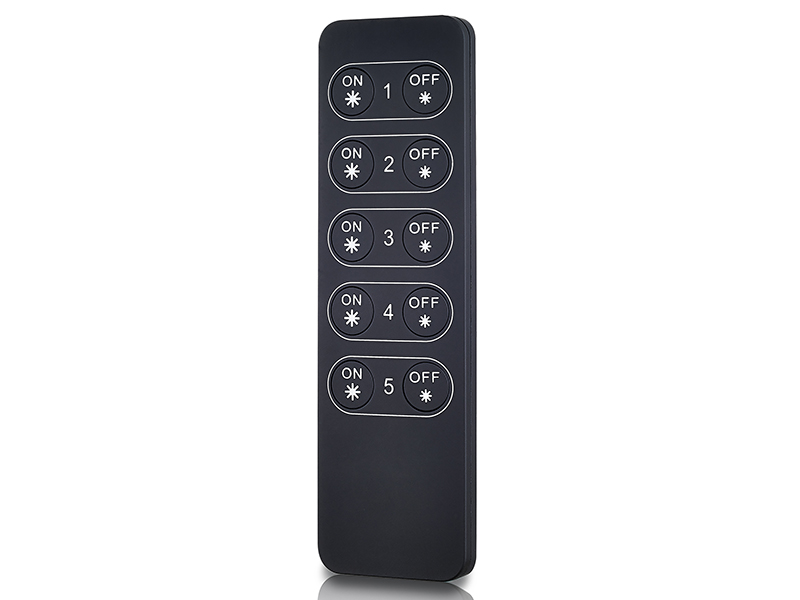

RF Remote Control Dimmer SR-2833K5

RF remote control dimmer SR-2833K5 is a single color LED controller which offers both switch on/off and smooth brightness dimming functions. Designed with easy-to-use interface, the dimmer controller can adjust brightness fast, accurate and smoothly without any flickering.

SKU: SR-2833K5 Category:

RF remote control dimmer SR-2833K5 is a single color LED controller which offers both switch on/off and smooth brightness dimming functions. Designed with easy-to-use interface, the dimmer controller can adjust brightness fast, accurate and smoothly without any flickering. Each controller can control 5 different zones separately with endless receivers in each zone. Smooth dimming range from 0.1%-100% without any flickering really does good to human eyes. Humanized memory function enables the remote dimmer remember the last brightness after turn off or cut off. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Key Features

  • Reliable stable switch and dimming control function, control distance can be over 20m
  • Battery in the remote comes with long lifespan, can be used for 2 years
  • Control 5 different zones separately with endless receivers in each zone
  • Swicth on/off lighting slowly without any flickering
  • Work with power repeater to expand the output power unlimitedly
  • Enable to be dimmed and switched on/off by push button after connecting receivers
  • Smooth dimming without any flickering from 0.1% to 100%
  • Push dim function
  • Receivers can work with WiFi-RF converter after installing APP on IOS and Android systems



Remote

Part No. Operation Voltage Operation Frequency Dimension (mm) Remarks
SR-2833K5 3VDC 434MHz/869.5MHz/916.5MHz 40*136.5*11.5 RF Wireless











Compatible Receiver

Part No. Input Voltage Output Current Output Power Output type Dimension (mm)

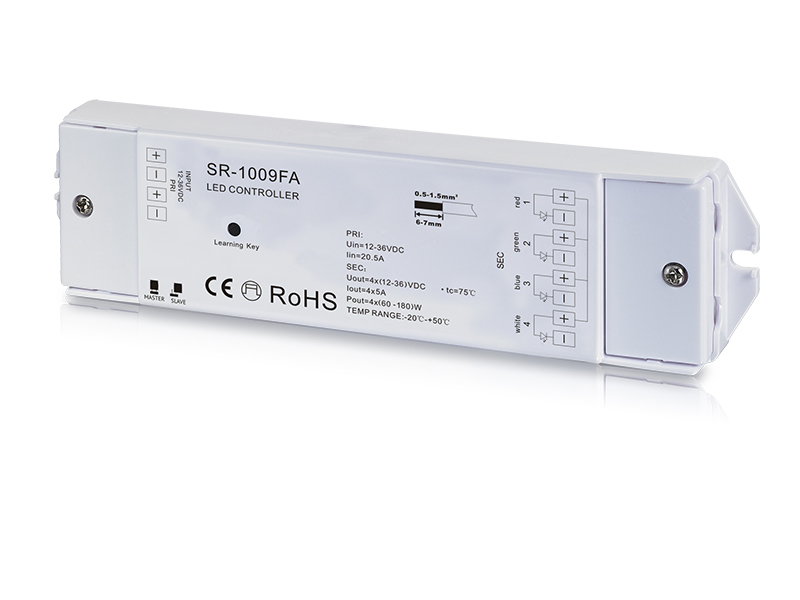

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 46*178*18

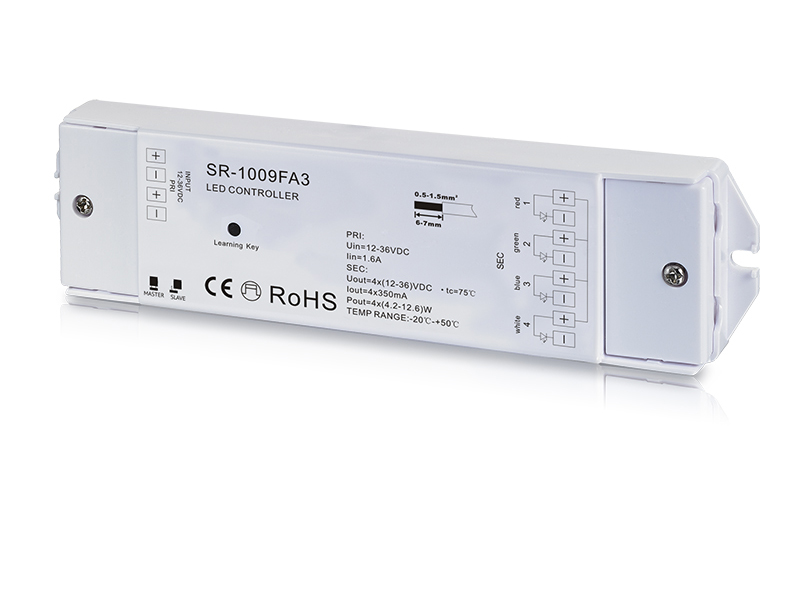

SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Constant Current 58*168*28













Product Dimension

Product Dimension



Receiver Wiring Diagram

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
