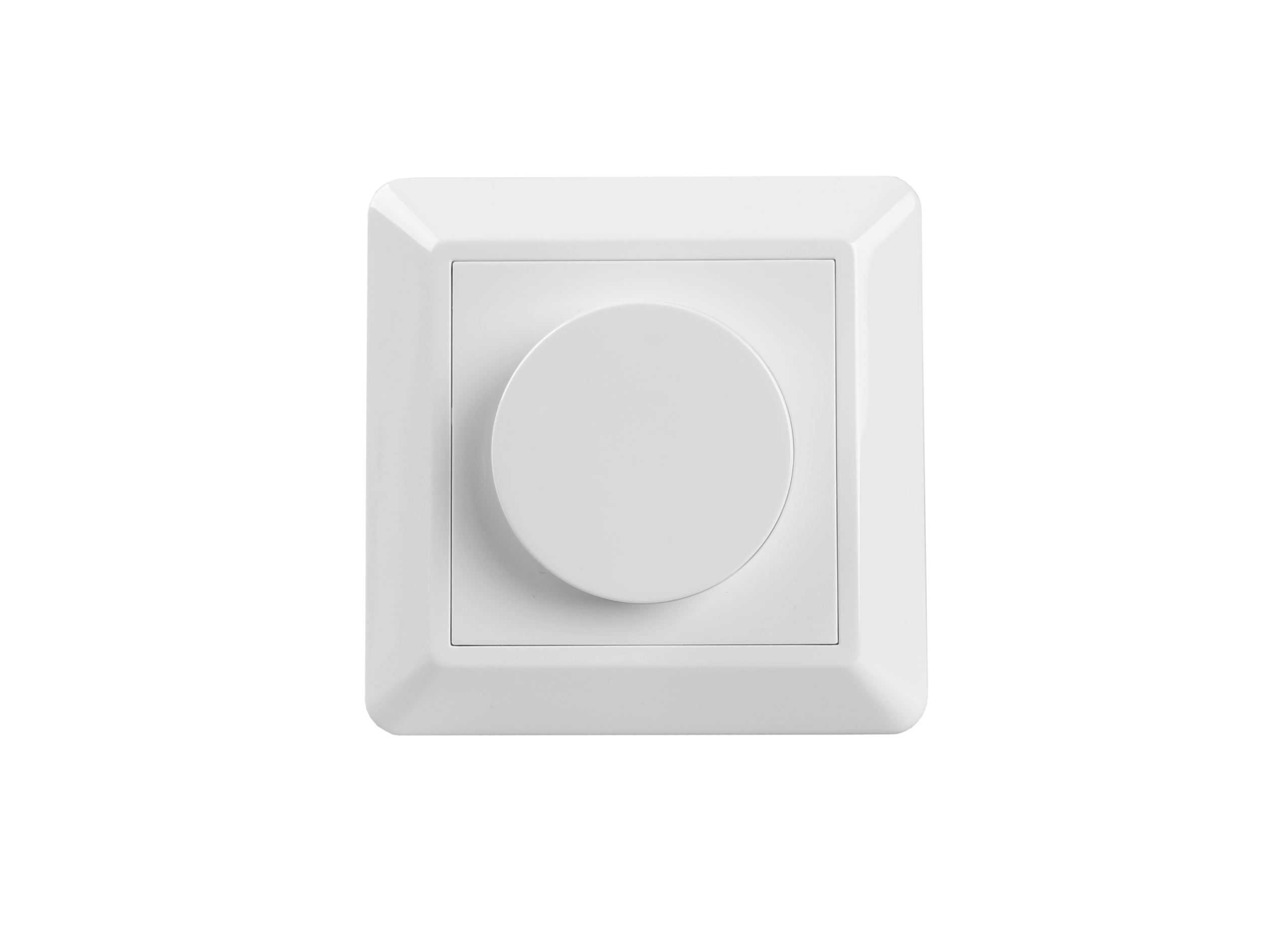

DALI MCU digital rotary dimmer with built-in 100mA DALI power supply, controlling up to 50 DALI ECGs. Supports DT6 devices and 16 groups via rotary switch. Operates by AC or DALI bus with adjustable minimum dimming level.
Key Features
• DALI MCU digital rotary dimmer
• Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
• Powered by DALI bus while not connected to AC mains.
• Max. 100 DALI ECGs on a DALI line can be controlled by 4 MCUs via broadcast (2 by AC mains, 2 by DALI bus).
• Enables to select and control 1 DALI Group from total 16 Groups

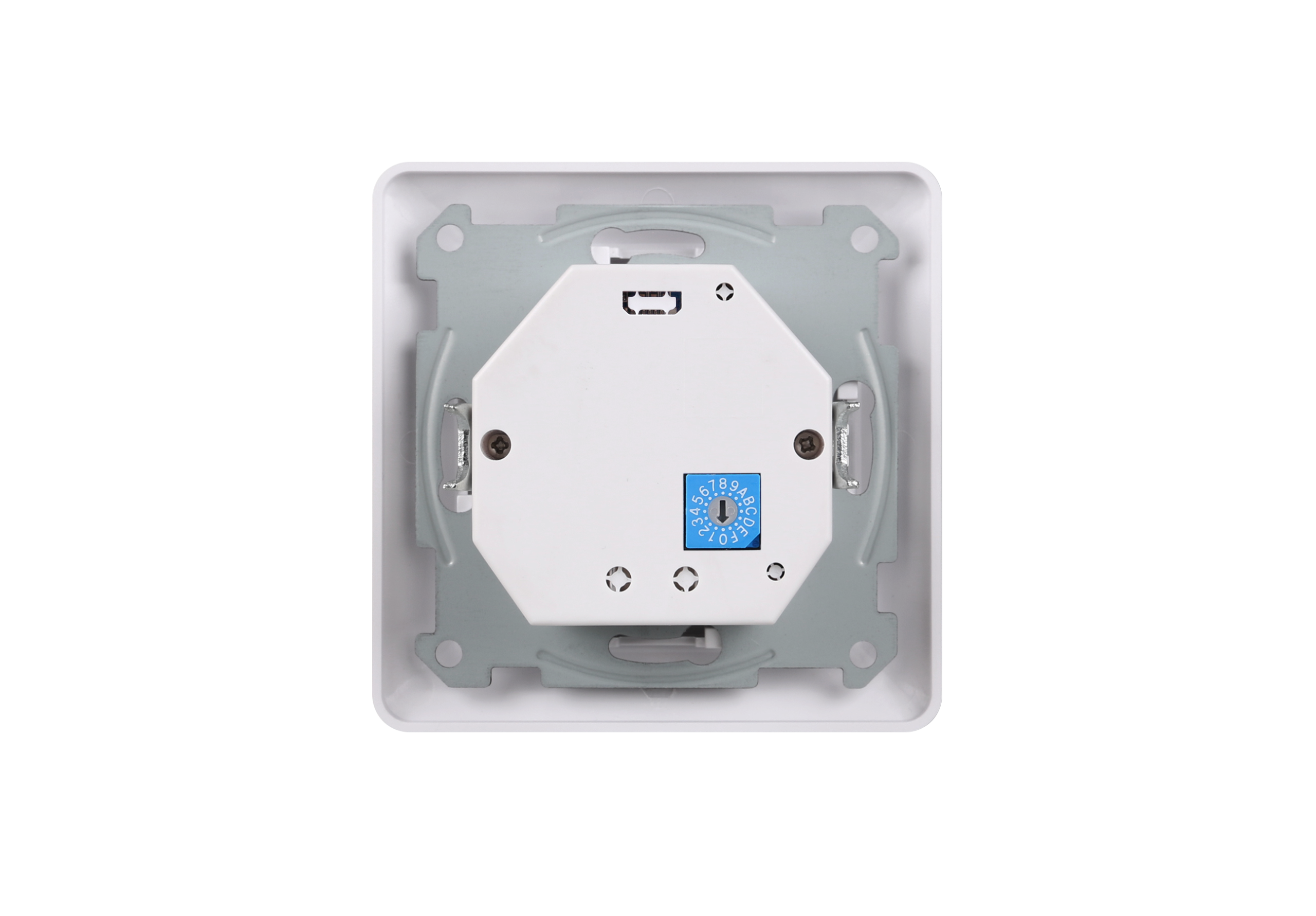

• Enables to set the DALI group number (0-15) to be controlled by rotary switch on the back.
• Supports DALI DT6 devices
• Enables to set and delete a minimum dimming level
Specifications
| Part No. | Rated supply voltage | Typ. current | No. of dimming channels | Max. DALI devices per dimmer | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2400RG-DIM-A | 100-240VAC |
27mA (@ 230 V/50 Hz/full load) |
1 |
50 | 80*80*53 |
Product Dimension
Wiring Diagram
