RF LED touch pad dimmer is a full touch LED controller which offers both switch and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, the touch dimmer features smooth dimming and switching functions without any flickering. Each dimmer can control 4 different zones separately with endless receivers in each zone. Smooth dimming range from 0.1%-100% without any flickering can be very comfortable for human eyes. Humanized backlighting function enables the touch pad dimmer to be found even in the dark. Compatible with SR-1009 series RF receivers that are available in both constant voltage and constant current versions, the touch pad dimmer is capable of controlling different types of LED lighting. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
- Reliable stable switch and dimming control function, control distance can be over 20m
- One button dim and switch on/off all zones
- Control 4 different zones separately with endless receivers in each zone
- Swicth on/off lighting slowly without any flickering
- Work with power repeater to expand the output power unlimitedly
- Italian/Australian, US wall mounted size available as well
- Smooth dimming without any flickering from 0.1% to 100%
- Backlighting for finding in the dark
- Receivers can work with WiFi-RF converter after installing APP on IOS and Android systems
- Both DC and AC input versions are available
Remote
| Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
|---|---|---|---|---|

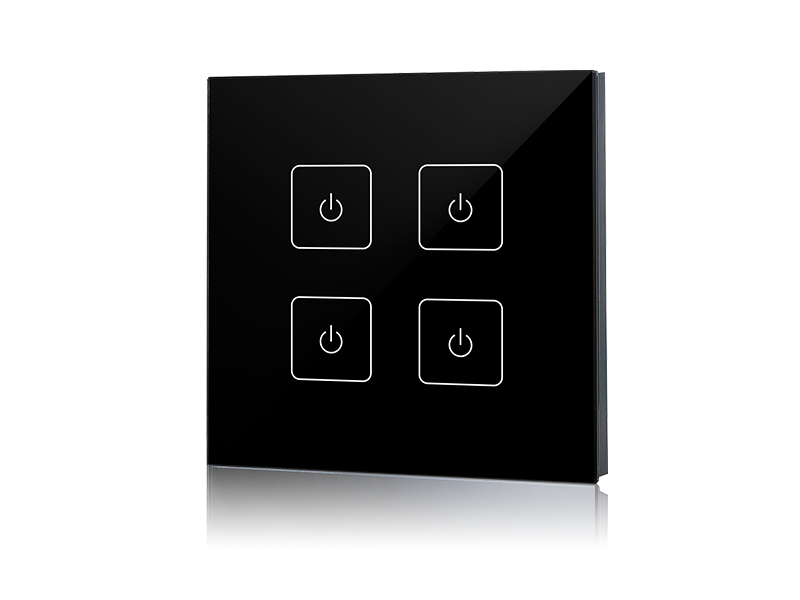

| SR-2833T2 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | Touch Sensor |

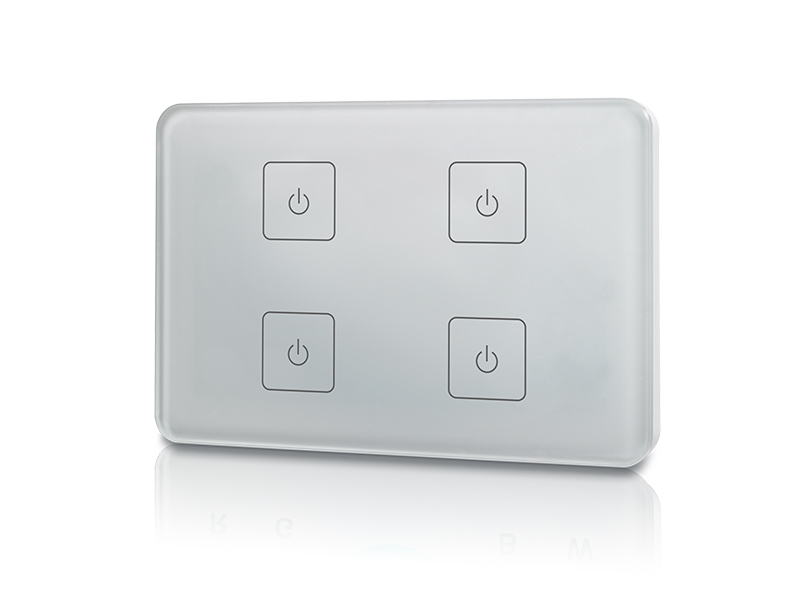

| SR-2833T2(IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | Touch Sensor |

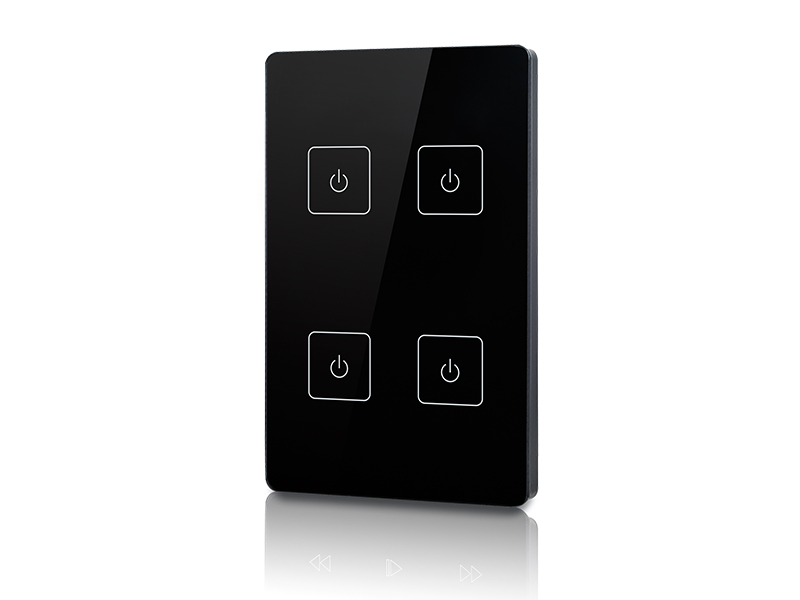

| SR-2833T2(US) | 12-24VDC/100-240VAC | 916.5MHz | 75*120*41 | Touch Sensor |
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|---|---|---|---|---|

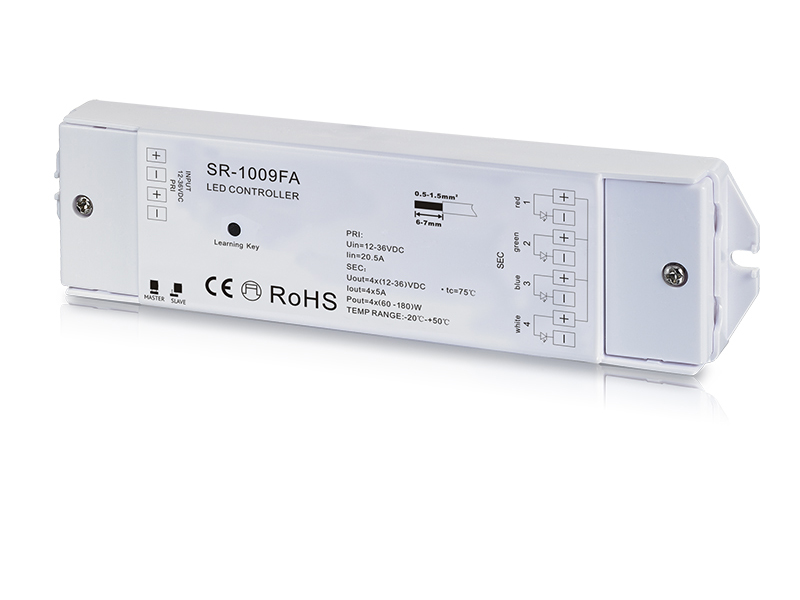

| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
| SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation Diagram
Receiver Wiring Diagram
